Anemometer u. Windrichtung [Pro-D]

Added In den Einkaufskorb

Despatched in 12-15 working days

This product will be despatched within 10-15 working days
---- QUESTIONS AND ANSWERS ----

Dieses Pro-D Anemometer misst Windgeschwindigkeit und -richtung, wenn es mit Windgeschwindigkeitsdatenloggern wie den Neuerscheinungen WindLogger und WindTracker oder mit unseren GSM-Systemen verbunden ist.

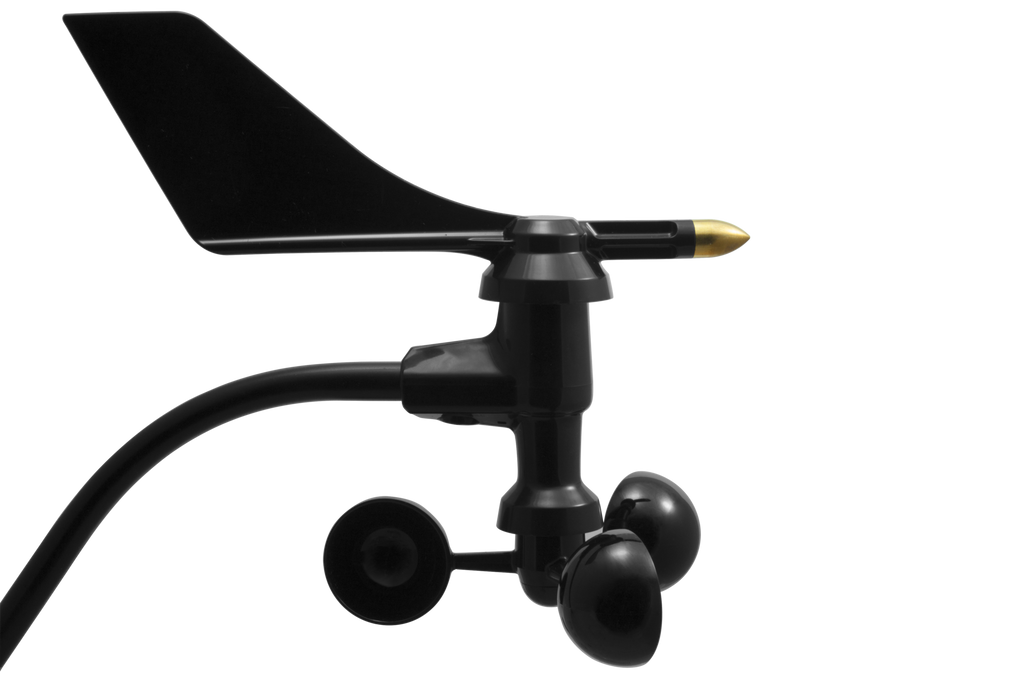

Das Pro-D Anemometer (Davis 6410) ist mit einem Windgeschwindigkeitssensor, einer Wetterfahne, einer Vorrichtung für ein 2"-Rohr (Sie benötigen bloß einen Windmast.), 13 Meter Kabel sowie Montagezubehör ausgestattet.

Allgemeine Spezifikationen:
Sensor-Typ: Windgeschwindigkeit – Windschalen und Magnetschalter; Windrichtung – Wetterfahne und Potentiometer
Angeschlossene Kabellänge: 12m (40ft)
Kabel-Typ: 4-Leiter, 26 AWG
Material: Wetterfahne und Steuerkopf: UV-resistentes ABS
Windschalen: Polycarbonate
Anemometer-Arm: schwarz eloxiertes Aluminium
Maße: 381mm L × 38mm W × 457mm H
Output Windrichtung:

Für weitere Informationen über das Pro-D Anemometer bitte diese .pdf-Datei herunterladen.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Simone Moras
Department of Ecology and Genetics/Simone Moras

In our project, we need to predict methane emission from lakes since it is a potent greenhouse gas. But to do that, we need to understand lake hydrodynamics first (e.g. water temperature, stratification patterns etc.). Wind has a strong effect on lake hydrodynamics and, therefore, it would be fundamental to get high frequency data on wind speed on the lake we study hence this type of kit is providing us with the valuable data. The lake I study is located in an agricultural area so no major obstacles (i.e. trees) will affect the wind speed.

M
Michael Huber
Ski resort AXAMER LIZUM

Windcrane Max system is working as we hoped. We got all the information including the wind direction we needed for our snowmaking system. We had a very cold condition with wind and snow, but it worked very well. Also, the PV panel works very well.

Customer Questions

Ask Question
0
Q: Dear,I have bought the kit Pro-D+Wind Logger.I want to use our own DAQ system for live reading, for that I would need more information regarding the output signal of both sensors (vane anda anemometer). For example, output range V, sensitivity, calibration values.Thank you in advance.João OliveiraBosch Car Multimedia Portugal SA

A: You can find details of the anemometer here: https://www.windlogger.co.uk/collections/sensors/products/pro-d-anemometer and also you can connect to the WINDLogger via serial port, which will provide the data ready for consumption in ASCII format
