neuer LeWL WindLogger

5.0 ⭐⭐⭐⭐⭐ (810+ Orders)

£395.00

This product will be despatched within 10-15 working days

---- QUESTIONS AND ANSWERS ----

Kategorie: anemometer, datalogger, LeWL wind logge, LeWL windlogger, Wind, Wind measurement

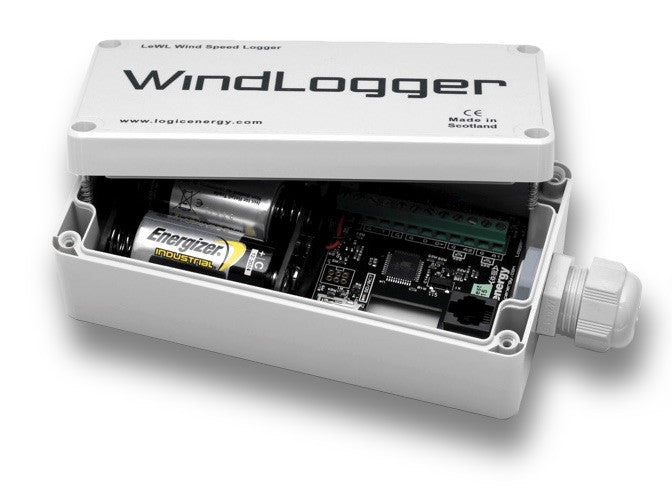

Der neue LeWL WindLogger wird seit 2008 hergestellt. Tausende dieser kleinen Winddatenlogger haben bereits Abnehmer in aller Welt gefunden, und sie erfreuen sich eines hervorragenden Rufs in puncto Verlässlichkeit, Genauigkeit und Widerstandsfähigkeit.

Der neue WindLogger wurde neu designt und optimiert – mit der Hilfe der kleinen aber enthusiastischen Windkraft-Community. Wir haben ihr Feedback aufgenommen und diverse Verbesserungen vorgenommen:

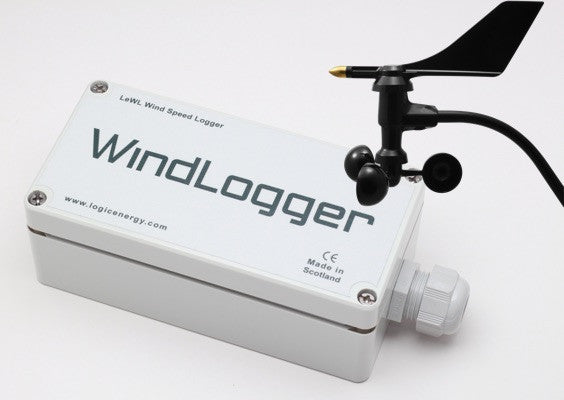

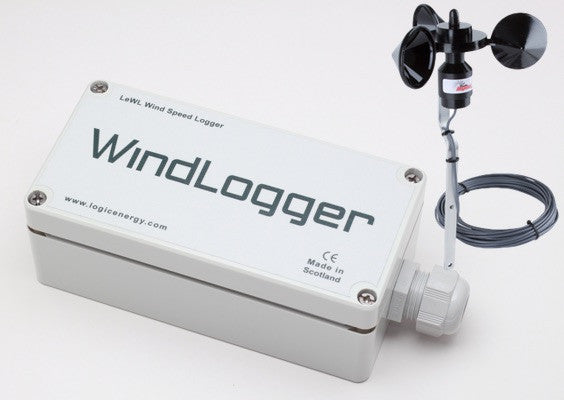

Die Installation ist so simpel wie nie. Das Davis-Anemometer schlicht mit dem internen 6P4C-Anschluss verbinden. Auch andere Anemometer-Typen sind okay. Sie können sie direkt am internen Input-Verbindungsblock anschließen.
Automatisches Anemometer-Erfassungssystem. Der neue WindLogger teilt Ihnen mit, ob ein Anemometer angeschlossen und funktionsfähig ist, ehe Sie den Standort verlassen.
Option für externe Temperatursonde
Eingebaute Batterie-Anzeige
Hervorragende Batterielaufzeit von bis zu 1 Jahr, bei 1-minütigem Logging-Intervall.

Spezifikationen
- Windgeschwindigkeiten von bis zu 2 Anemometern gleichzeitig aufzeichnen - Durchschnittswindgeschwindigkeit, Windböengeschwindigkeit und Standardabweichung (Turbulenz) sowie Windrichtung
- Input für externe Temperatursonde
- Bis zu 1 Jahr Batterielaufzeit bei 1-minütigem Aufzeichnungsintervall oder 3 Jahre bei 10-minütigem Intervall. (10 Sekunden zu Testzwecken verfügbar.)
- Aufzeichnung der Daten samt Zeitmarken auf microSD-Karte im Standard-CSV-Format zwecks Import in Excel oder Wind-Analyse-Software. Inklusive sämtlicher Sensorenwerte und Batterie-Status.

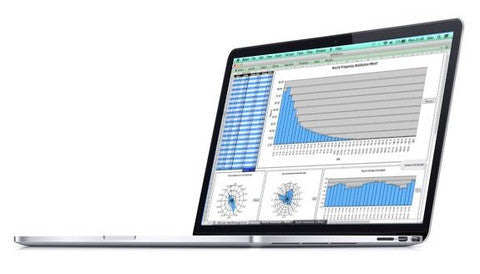

- Simples Analyse-Tool beiliegend. (Excel-Vorlage zu Ihrer Bearbeitung oder Java-App)
- Rundum wetterfestes Gehäuse mit IP65-Wertung
SD-Kartenspeicherung
- Dateien im Standard-CSV-ASCII-Format, archiviert als Monatsprotokoll
- Aufzeichnung der Durchschnittswerte, der Maxima und der Standardabweichung
- Datenaufzeichnung inklusive Datum und Uhrzeit
- microSD-Flash-Karte (FAT32)
Vier Sensoren-Inputs

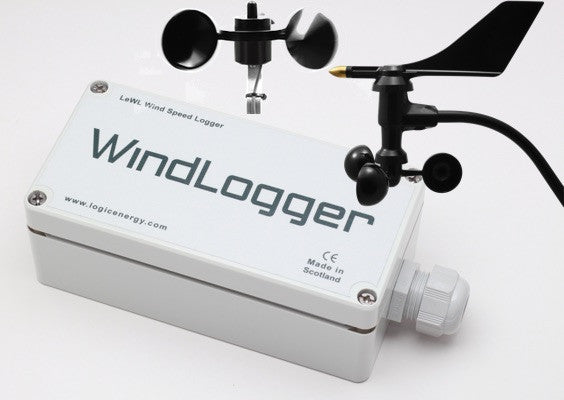

- Zwei Anemometer gleichzeitig loggen (2 Digital-Inputs)
- Unterstützt (spannungsfreien) Trockenkontakschalter, Hall-Effekt-Schalter, Open-Collector- oder 3V-Logic-Level-Signal-Input der Windgeschwindigkeit
- Windrichtungsmesser (Potentiometer-Typus), 1.000 - 20.000 Ohm.
- Unterstützt externen Temperatursensor
Serieller Bus als PC-Schnittstelle
- RS232-kompatibel, um beim Datenloggen Werte auszulesen
- Einrichtung via seriellem Bus oder SD-Karte
- 4800bps
- Anpassbare Sensor-Faktor-Einrichtung via RS232

Physische Daten
- Betriebstemperatur von -40°C bis +70°C (Fragen Sie uns zuerst für die extremen Wetteranwendungen )
- Versiegeltes IP65-Gehäuse mit Durchgang für die Sensorendrähte
- Maße: 160×80×55mm
- Gewicht: 450g inklusive Batterien

Handbuch und Kurzanleitung hier herunterladen oder F.A.Q. und Videos zum WindLogger anschauen

Review left on the WindLooger with Anemometer & Wind Direction product, by Robert Holl, “Monitori...

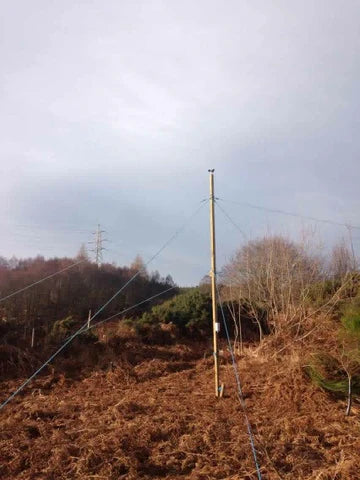

The wind gauge is working very well. Our trainees built a 10-meter-high steel tower, and the measuring equipment has been hanging there and operating reliably for a year. The measurements provided us with the information we needed. We are now changing the battery for the first time after a year, which is also great.

Review left on the WindLogger with 2 anemometers & wind Vane product, by Bram Peirs, "Wind projects"

We purchased Lewl Windlogger for our projects after technical support professionally explained what the error margin of the standard anemometer is compared to a calibrated one. We are happy with the product and want to order more units.

Review left on the WindLogger with 2 anemometers & wind Vane product, by Simone Moras, "DEPARTMEN...

Our project aims to forecast methane emissions from lakes, crucial greenhouse gas sources. Understanding lake hydrodynamics, including factors like wind speed and its direction is essential. High-frequency wind speed data is vital due to wind's significant impact on lake hydrodynamics. The chosen kit is supplying valuable data for our study. The lake is situated in an agricultural area and is free from major obstacles like trees that could interfere with wind speed measurements.

From Waste To Wind

We purchased Lewl Windlogger for our projects after technical support professionally explained what the error margin of the standard anemometer is compared to a calibrated one. WE are happy with the product and want to order more units.

Atacama Desert

Studying the aerosol/particulate material deposition for Atacama Desert, we set a west-east transect of dust traps starting close to the Pacific Ocean until the Andes Cordillera. To study the atmospheric deposition and its temporal-spatial dynamics we purchased 3 wind trackers close to the dust traps so we analyse the wind speed and direction. Excellent customer support with our first international purchase out of Chile.

1 2

Customer Questions

Ask Question

Q: Can this wind logger measure temperature too?

A: Yes, it comes pre-configured to use this temperature probe: https://www.windlogger.eu/collections/sensors/products/temperature-thermistor We also recommend using a solar radiation shield if you intend to use the temperature probe under direct Sun light: https://www.windlogger.eu/products/radiation-shield-for-sensors

Q: Hello,I am interested in the LeWL setup for ecology research regarding wind-use in birds. I am wondering what the sensitivity is of the anemometer - for both high- and low- wind-speeds? Thank you,Kris

A: There're many many sensor options, it is probably best to contact us with more details about your requirements. In the meantime, have a look at these: https://www.windlogger.com/collections/sensors

Q: Hi guys,Do you have a MAC OS setup program for the LEWL by any chance?

A: Unfortunately not, however the setup is done using a simple text file that can be edited manually. When the new file is found by the data logger, then it loads its configuration. This process is described in the wind logger manual.

Q: Hi,How many days to reach buyer in Manila, Philippines. İ'd like to buy wind logger plus anemometer and wind vane.Thanks. Hope you response.

A: Hello, we usually dispatch within 2 working days. You should expect to have your items with you within a week. Feel free to contact us directly if you need more details.

Q: Is the sensor compatible with Anemometer Young?

A: Hello, it depends which model. You would need to use one with a pulse output.

Q: Hello,The wind direction angle recorded by these devices represents the direction the wind is blowing FROM? Does a 90º direction mean wind blows westward? Thank you, I purchased 4 anemometers of yours and they are just fine!

A: Yes, that is correct. The wind vane points where the wind is coming from, in the case of recording a 90º, the wind would be comfing from the East. 90º is East, and 270º would be West.

Q: I am interested in getting a new LeWL WindLogger, Could you tell me if the equipment has calibration report and what class it is?

A: Calibration certificates are done for the anemoeters (wind sensors). In this case, depending on the size of your project you may need a 1st Class MEASNET anemometer. Feel free to contact us with details, we will be happy to suggest the best option.
